Fans series with forward curved blades.
Versions:
Standard: PE moulded housing - PP moulded impeller - epoxy painted motor support - stainless steel screws
ATEX
: PE-el antistatic moulded housing - PP moulded impeller - epoxy painted motor support - stainless steel screws
Variants available for both versions on request as list.
Resistance chemical agent
Rated data

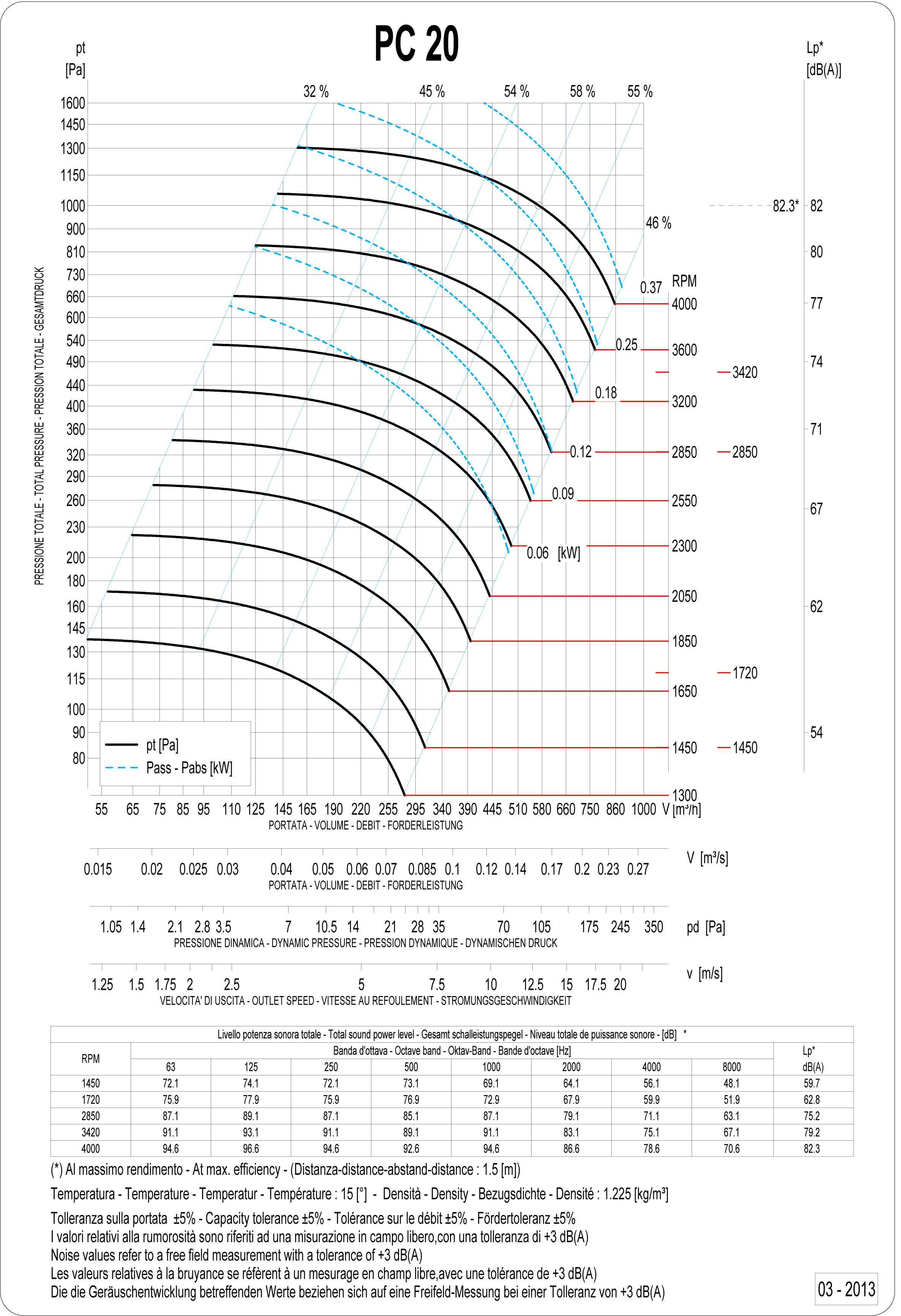

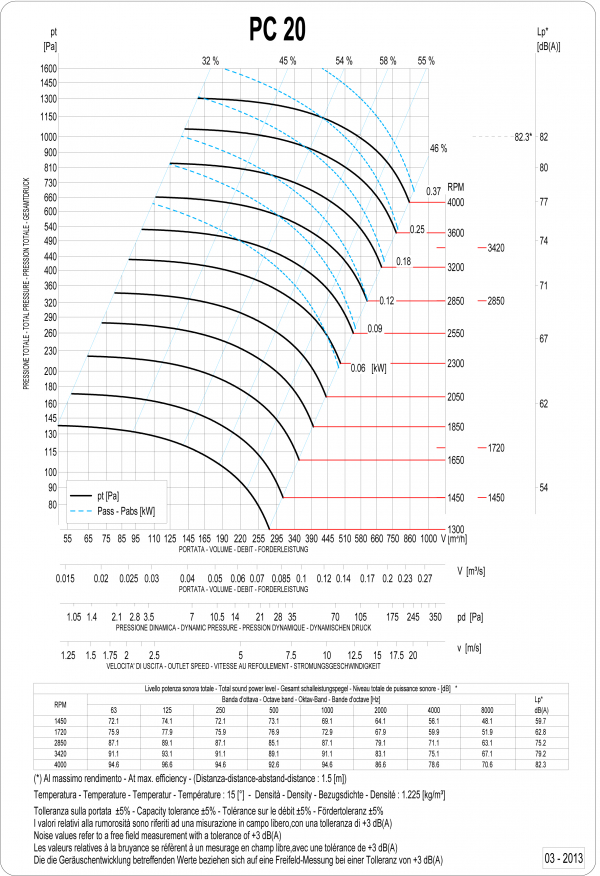

Rotation fan's table
Motor connection diagram

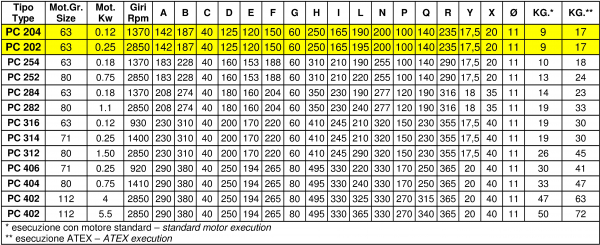

Arrangements

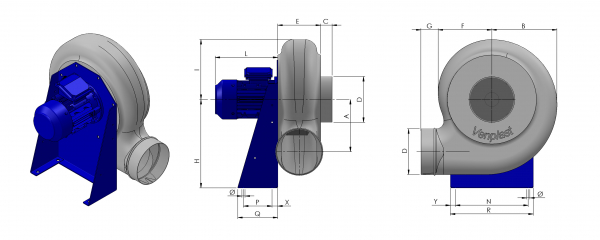

PC 20 DWG drawing
