Fans series with radial blades.
Versions:
Standard: PP welded housing - PP welded impeller / INOX / Fe+Ebonite - epoxy painted motor support - stainless steel screws
ATEX
: PP-el antistatic welded housing - PP welded impeller / INOX / Fe+Ebonite - epoxy painted motor support - stainless steel screws
Variants available for both versions on request as list.
Resistance chemical agent
Rated data
Rotation fan's table
Motor connection diagram
Arrangements

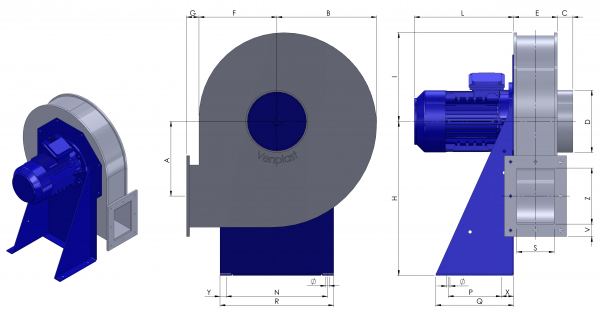

PAS312LG DWG drawing
PAS312RD DWG drawing
